额定动作温度

（TF）

在仅通以不超过10mA的探测电流的条件下测得的使热熔断体导电状态改变的温度，热熔断体必须在上述温度0/-10℃范围内动作。

Temperature of the thetmal-link which causes it to change its state of conductivity with a detection current up to

10mA as the only load. Thermal fuse must be fusing within the scope of +0/-10℃.

熔断温度

Fusing-off

temperature

产品放置油槽内并通以不超过10mA电流值 ，然后以0.5K/min 至1K/min 的速度稳定升温 ，热熔断体实际动作温度值。

The fusing-off temperature indicates value measured in the test oil bath and temperature be increased steadily

with a rate of rise between 0.5K/min and detective current 10mA or less.

保持温度

（Th）

热熔断体在规定的条件下通过额定电流且保温168小时，其导电状态不发生改变的最高温度值或按IEC60691标准测试值。

The maximum temperature at which a thermal-link will not cause a change in state of conductivity to open circuit

while conducting rated current for 168 hours or according to IEC60691.

最高极限温度

（Tm）

由制造厂规定的温度，在此温度下热熔断体导电状态已改变，但其机械性能和电气性能在规定的时间内不致减弱。

Temperature of the thermal-link stated by the manufacturer , Up to which the mechanical and electrical properties

of the thermal-link , Having changed its state of conductivity , Will not be impaired for a given time.

材质

Materials

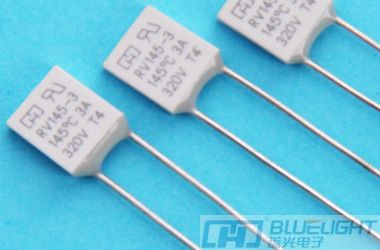

本体 Body：Thermoplastic

引脚 Lead： Tin Plated Copper Wire

封口树脂 Sealing Resin：Epoxy Resin

特性

Features

应用领域

Application

灯具、开关电源、家用电器、电机、变压器、元器件、通讯等领域。

Lamps, Switching Power Supply, Home Electrical Appliances, Motors, Transformers, Components, Communications

Field , etc.
