L5CT系列/Φ5X20陶瓷管保险丝(高分断延时)

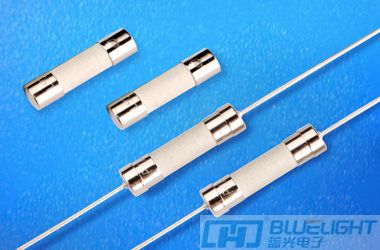

蓝光L5CT系列/Φ5X20mm陶瓷管保险丝简介：(高分断延时小型保险丝)
Φ5X20mm 陶瓷高分断保险丝管（慢断/延时）Φ5X20mm Ceramic Tube Fuses HBC (Time-Lag)
材料Materials
本体Body：陶瓷管Ceramic Tube
引线Lead：镀锡铜线Tin Plated Copper
铜帽Cap：黄铜镀镍Nickel Plated Brass
可熔体Element：合金丝Alloy Wire
工作温度Operating Temperature：-55℃ to + 125℃
可焊性Solder ability：260 ℃, ≤ 3s. (波峰焊wave) /350±10 ℃, ≤ 3s. (烙铁焊soldering iron)
安规：UL/CCC/CQC/VDE Approved（详细见下表）
 |  |
| 电气特性 ELECTRICAL CHARACTERISTICS | ||||||||
额定电流 Rated Current | 熔断时间 Opening Time | |||||||
| 150% | 210% | 275% | 400% | 1000% | ||||
| Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | |
| 100mA-800mA | 1hour | 30min | 250ms | 80sec. | 50ms | 5sec. | 5ms | 150ms |
| 1A-3.15A | 1hour | 30min | 750ms | 80sec. | 95ms | 5sec. | 10ms | 150ms |
| 4A-10A | 1hour | 30min | 750ms | 80sec. | 150ms | 5sec. | 10ms | 150ms |
| 12A-16A | 1hour | 30min | 750ms | 80sec. | 150ms | 8sec. | 10ms | 150ms |
In accordance with IEC60127.1 , IEC60127.2 , GB9364.1 , GB9364.2
| 分断能力 INTERRUPTING RATING | |||||||
| VDE | 1500 amperes at 250V AC | ||||||
| CQC | |||||||
| cURus | (100mA - 1.6A) 1000 amperes at 250V AC | ||||||
| (2A - 16A)200 amperes at 250V AC | |||||||
| 产品特性 PRODUCT FEATURES | |||||||
材质 Materials | 本体Body：陶瓷管 Ceramic tube 引脚Lead：铜镀锡 Tin plated copper wire 铜帽Cad：黄铜镀镍 Nickel plated brass 熔丝Element：合金 Alloy | ||||||
操作温度 Operating Temperature | -55℃~125℃ (需考虑温度折减 Consider de-rating) | ||||||
可焊性 Solderability | 260℃, 3s Max. (波峰焊 Wave) 350±10℃， 3s Max.(烙铁焊 Soldering iron) | ||||||
耐焊接热 Resistance to Soldering Heat | 260℃, 10s Max. (波峰焊 Wave) 350℃, 5s Max.(烙铁焊 Soldering iron) | ||||||
建议焊锡参数 Recommended Soldering Parameters | 波峰焊 Wave soldering parameter 锡炉温度 Soldering por temperature: 260℃. 焊接时间 Solder dwell time: 2-5s Max. | ||||||
手工焊 Hand soldering parameter 烙铁温度 Soldering iron temperature 350±5℃ 焊接时间 Solder dwell time: 5s Max. | |||||||
储存条件 Storage Conditions | 在温度+10~60℃、相对湿度≤75%的密闭条件下可存放3年。 Can be stored for 3 years under tight seal condition at temperature +10~60℃ relative humidity ≤ 75%. | ||||||
在温度+10~60℃、相对湿度为95%的非露天下最多可存放30天。 At most can be kept 30 days at temperture +10~60℃ relative humidity be 95% under covered conditions. | |||||||
产品部件号 Part NO. | 额定电流 Current Rating | 安全认证 Safety Approvals | I2T参考值 Reference (A2Sec.) | ||||||
|  |
|
|
|
|
| |||
| L5CT 0100 | 100mA | ● | 0.009 | ||||||
| L5CT 0125 | 125mA | ● | 0.010 | ||||||
| L5CT 0160 | 160mA | ● | 0.010 | ||||||
| L5CT 0200 | 200mA | ● | 0.036 | ||||||
| L5CT 0250 | 250mA | ● | 0.059 | ||||||
| L5CT 0315 | 315mA | ● | 0.109 | ||||||
| L5CT 0400 | 400mA | ● | 0.170 | ||||||
| L5CT 0500 | 500mA | ● | 0.293 | ||||||
| L5CT 0630 | 630mA | ● | 0.625 | ||||||
| L5CT 0800 | 800mA | ● | 0.959 | ||||||
| L5CT 1100 | 1A | ● | ● | ● | 1.462 | ||||
| L5CT 1125 | 1.25A | ● | ● | ● | 1.976 | ||||
| L5CT 1160 | 1.6A | ● | ● | ● | 4.780 | ||||
| L5CT 1200 | 2A | ● | ● | ● | 12.67 | ||||
| L5CT 1250 | 2.5A | ● | ● | ● | 19.06 | ||||
| L5CT 1300 | 3A | ● | 11.95 | ||||||
| L5CT 1315 | 3.15A | ● | ● | ● | 14.85 | ||||
| L5CT 1400 | 4A | ● | ● | ● | 37.54 | ||||
| L5CT 1500 | 5A | ● | ● | ● | 50.90 | ||||
| L5CT 1630 | 6.3A | ● | ● | ● | 105.7 | ||||
| L5CT 1800 | 8A | ● | ● | ● | 202.9 | ||||
| L5CT 2100 | 10A | ● | ● | ● | 307.9 | ||||
| L5CT 2125 | 12.5A | ● | ● | ● | 511.8 | ||||
| L5CT 2150 | 15A | ● | 896.7 | ||||||
| L5CT 2160 | 16A | ● | ● | ● | 1005 | ||||
